Description

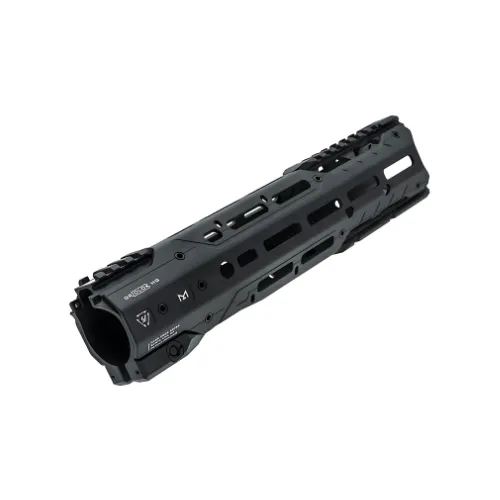

This is the Strike Gridlok Handguard (PRE-ASSEMBLED). It comes in four different lengths for the modern shooter to pick and choose based on their mission or intended use. Strike Industries has always been passionate about pushing the boundaries for innovative solutions and the Gridlok is a great product that embodies that ethos.

The GRIDLOK Handguard was made for the AR platform and is our first quick detachable M-LOK handguard featuring full modular colorways (different product page) with integrated backup sights, built-in picatinny mounts, and a spring loaded detach lever for the QUICKEST rail removal process ever. The QD Locking lever allows for rapid detachment of the rail housing from the barrel nut.

Made out of 6061 aluminum from precision CNC milling, the Gridlok is durable and has a semi-matte finish for the smooth finish. Using 7250 anodized aluminum, its barrel nut provides a lightweight solution that's proprietary to our GRIDLOK system.

Featuring our patented RaiLok Mounting System, the GRIDLOK combines the versatility of M-LOK with ample picatinny slots to cater towards multiple accessories' mounting platforms. It gives the user the best of both worlds and allows for endless customization for attachments and configurations.

Of course, with a larger internal diameter of 1.6" the GRIDLOK is built to accommodate mid to large concussion reduction devices  so that you can recess them into the handguard to have that sleek and streamlined build.

Please Note:
Only the black Gridlok comes pre-assembled. If you would like to buy different colorways and to assemble your Gridlok parts yourself,

COMPATIBILITY:
Mil-Spec M4 upper receiver

NOT COMPATIBLE:
-Most piston gas blocks
-Some billet/side charging uppers

Torque: 30-50 ft/lbs (47.45-67.79 nM) for the barrel nut

Handguard Weights
11-Inch: 15.38 oz

Product Features:
- Quick rail detach, removing the rail housing from the barrel nut/ The QD Locking Lever features a tightness adjustment
- Barrel nut shroud and front rail (top & bottom) is modular and customizable/ New barrel nut material using 7250 Anodized aluminum vs. traditional steel.
- Integrated font sight/ Front top rail can be removed to accommodate A2 sight set-up
- RailLok (TM) can accommodate picatinny 1913 and MLOK accessories/ Integrated QD mount/ alignment set screws to center the rail on to the firearm platform
- Internal rail clearance is at 40.5mm - it will accommodate the Oppressor's Blast Shield

Product Specifications:
Height of rail: 61.65mm
Width of rail: 46.2mm
Length of rail: 8.5"/ 11"/ 15"/ 17"
Internal diameter: 1.6 inches
Max Torque Value: Barrel Nut: 30-50 ft/lbs (40.5 NM)

 Package Contents:
1x Handguard Main Housing
1x Top Rail
1X Bottom Rail
1x Barrel Nut Shroud
1x Set Of Tools
1x Enhanced Barrel Nut
1x Barrel Nut Tools
1x Warning card

WARNING:
-Before every use, always check proper function of your QD mount and any wear and tear from use
-Always have your weapon in the SAFE position when not being fired
-Always follow all firearms safety rules and never point your weapon at anything you are not willing to destroy
