Engineering 3D printing, on your desktop

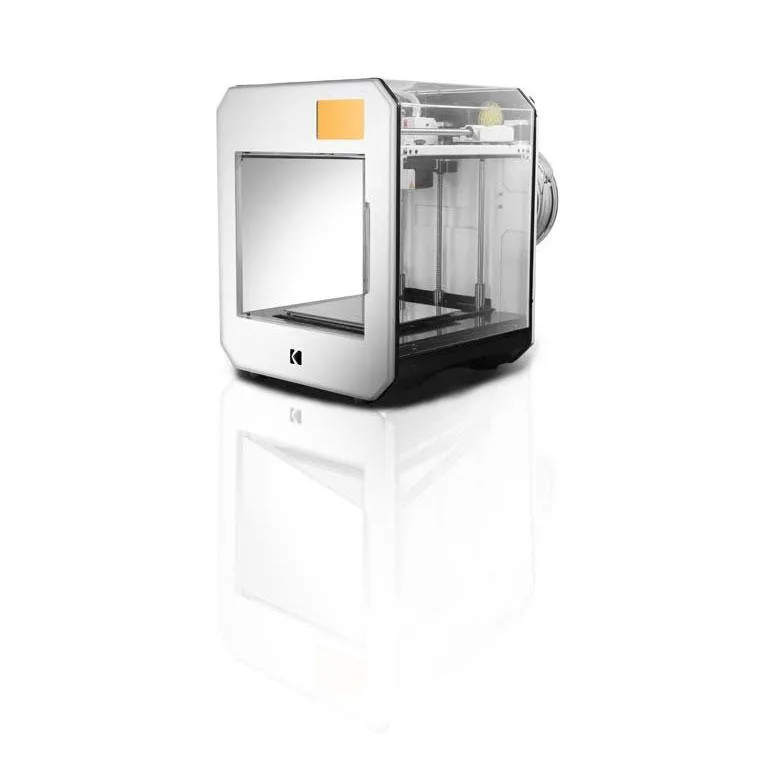

The KODAK Portrait 3D Printer is a reliable manufacturing system, capable of producing end-use parts in a wide variety of materials. Its solid steel structure, quality components and careful design result in a high uptime with low maintenance costs.
The KODAK Portrait 3D Printer has been created for consistency in production and ease of use at a professional level. Its sleek design and straightforward software make it a great choice in an educational capacity, while its dual extrusion and heat-controlled print compartment allow this 3D Printer to create the level of functionality within a design office setting.
- Reliable
- Accurate
- Easy to use
- Safe
Features
It’s connected
Access our remote management platform via Wi-Fi or the LAN port to slice online, monitor your prints, store and share files, administer a print farm and download over-the-air updates, among other functions.
It’s safe
For use in offices, factories or educational institutions, the enclosed chamber with air filtration keeps toxic particles and unwanted odors inside the printer, while keeping fingers away from hot, moving parts.
Enclosed chamber
The fully enclosed print chamber lets you print with more advanced materials such as ABS and Nylon, that would warp in an open printer, especially large objects.
In terms of safety, except for PLA, most materials should be printed with a closed chamber with effective air filtering to prevent irritating and toxic fumes and smells.
Adding an enclosure to a printer that was not designed that way introduces potential heating problems and affects print profiles that were not designed for that environment.
Filaments absorb humidity from the air, even after only a few hours. We provide sealed protective cases for our filaments that prevent humidity and dust from affecting the print quality.
Dual extrusion
The KODAK Portrait features a dual extrusion system engineered for multi-material compatibility, consisting of several components:
- Lifting hot ends: by lifting it out of the way, the passive hotend will not snag on the object being printed, enabling more complex geometries.
- Specialized hot ends: the printer has two distinct hotends, one all-metal for higher-temperature filaments, and one with a PTFE liner for more reliable PLA and PVA printing. No compromises!
- Easy to swap hot ends: using a single easily reachable screw and two electrical connectors, the hotends can be swapped quickly in case of a problem or simply to be able to use different nozzles conveniently.
- Reliable E3D extruders and hotends: top-quality, well-proven essential components with a wide variety of nozzles available.
- Capricorn Bowden tubes: precision made with a special plastic and high tolerances for smooth operation.
Properties
| Build volume | single extrusion: 215 x 210 x 235 mm (8.5 x 8.3 x 9.3”) dual extrusion: 170 x 210 x 235 mm (6.7 x 8.3 x 9.3”) |
|---|---|
| Hotends | dual extrusion with automatic nozzle lifting, 1 PTFE and 1 all metal |
| Hotend replacement | swappable |
| Nozzles | 0.4 mm standard, compatible with the full E3D line |
| Bed leveling | automatic, active Z compensation |
| Display | 5” color touchscreen |
| Structure | 2 mm steel |
| XY motion | Linear bearings, 12mm |
| Z motion | Precision ballscrew, 12mm |
| Connectivity | Wi-Fi, Ethernet LAN port, USB drive |
| Monitoring | 8 Mpx live camera |
| Lights | color LED lights indicating printer status |
| Sound | yes |
Parameters
| Z-axis resolution | 50 micron |
|---|---|
| XY resolution | 0.2 mm |
| Maximum nozzle temperature | 295ºC hotend 1, 240ºC hotend 2 |
| Maximum build plate temperature | 120ºC |
| Power requirements | 110/230V – Auto Switching, 50-60Hz 320W max |
| Print controller | 32 bits |
| Logic processor | 32 bits, quad-core |
| Operating ambient temperature | 10 – 30 ºC |
| Slicer file types | 3DS, 3MF, AMF, OBJ, and STL |
Software
| KODAK 3D Cloud | The KODAK 3D Cloud is built into every printer, is free to use, and provides remote operation functionality, without the need to install software on your workstation. Thanks to the cloud system, you don’t need to be physically in front of the printer to use. No longer in the office? No problem. You can launch a print through your home computer or even from your phone, whilst walking down the street. You can remotely upload models, slice them, prepare them and launch the print. Thanks to the built in camera, you can even monitor your print as a live stream, direct to your cloud account. |
|---|---|
| KODAK 3D Slicer | Based on Cura, the desktop version of our slicer gives you the freedom of not having to be connected to the internet and of avoiding the sometimes slow file transfers of large files. It features all the same power as the Cloud version. The KODAK Desktop Slicer is built on top of the popular Cura slicing engine. It comes with a full set of optimized print profiles. Use it to get the best print results with your KODAK 3D Printer, with no file transfer delays and without needing to be online. Available for all major operating systems. |
Service & Support
| Lifetime support | Expert technical support via email, phone, or from our global community is available to you for the lifetime of your printer. |
|---|
Extended Warranties
3DGBIRE offers a Warranty Extension to the Manufacturer Warranty, this extends the Warranty from 12 months to cover 36 months from the date of purchase.
Warranty extension includes:
- Extends the manufacturer warranty cover of parts for 3 years*
- Service Warranty for 3 years, if your machine needs repair we will commit to repairing it for you free of charge with a 72 hours time frame **
- Lifetime expert telephone & email support
*The Printcores are excluded from the warranty. **Excludes cost of carriage
